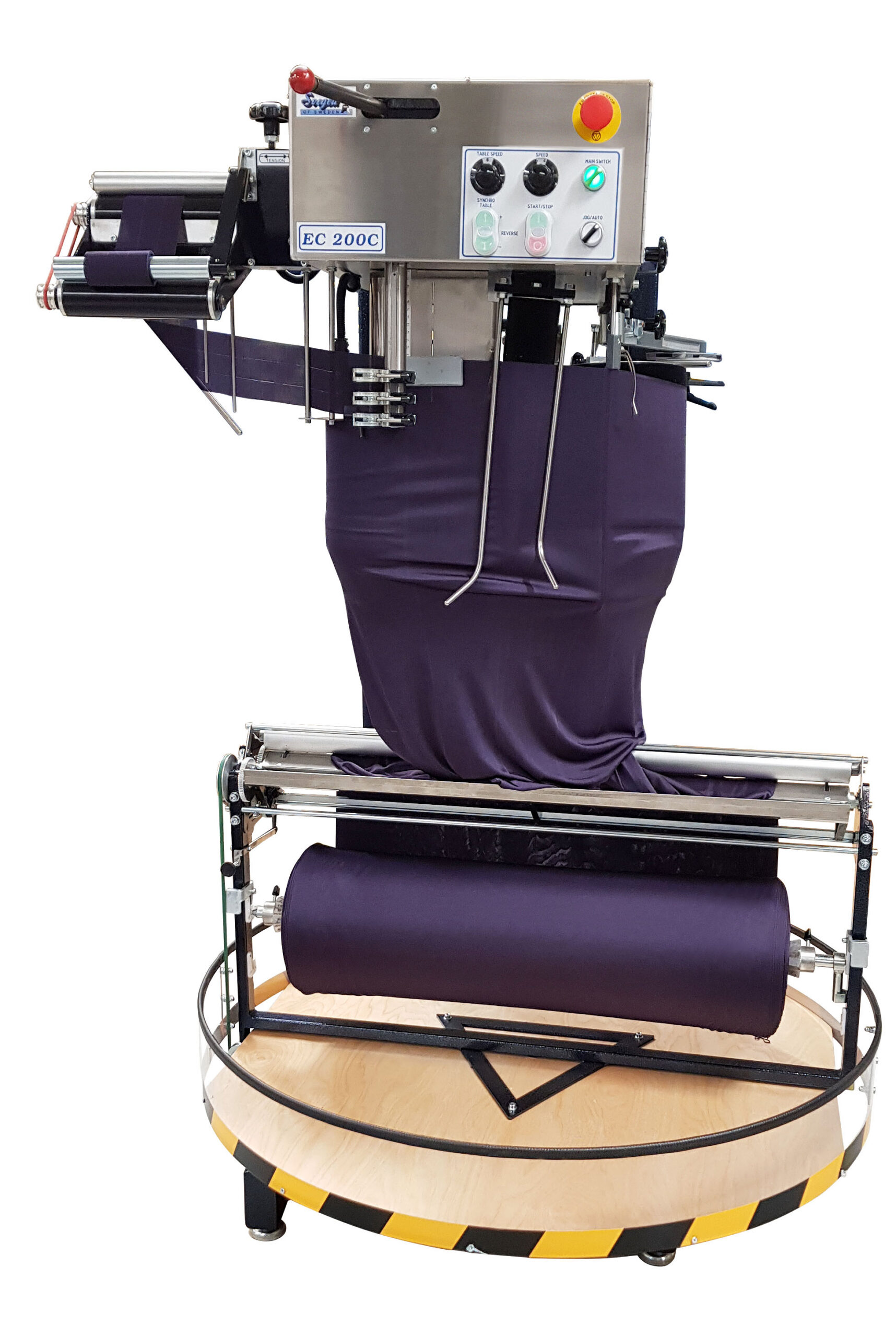

Euro-Collarette 200C Fully Automatic (EC 200C)
The Svegea Euro-Collarette 200C (EC 200C) is a fully automatic machine designed to convert tubular-knitted fabrics into uniform binding tapes. Featuring a heavy-duty crush-cutting system crafted from premium Swedish steel, it effortlessly cuts up to three fabric bands simultaneously. With soft start/stop controls, auto-stop sensors, and specialized fabric guides, the EC 200C ensures high-precision output, zero material waste, and maximum operator safety for apparel manufacturers.
Description
Main features
- Cuts virtually all tubular-knitted fabric with NO WASTE
- Variable cutting speed compensates for all fabric tensions
- Precise scales ensure precision width adjustments
- Electronic soft start and stop assure highest quality at the beginning and end of each band roll
- Unique band and fabric guides give fabric control, assuring problem-free cutting of most single jersey, rib and terry products

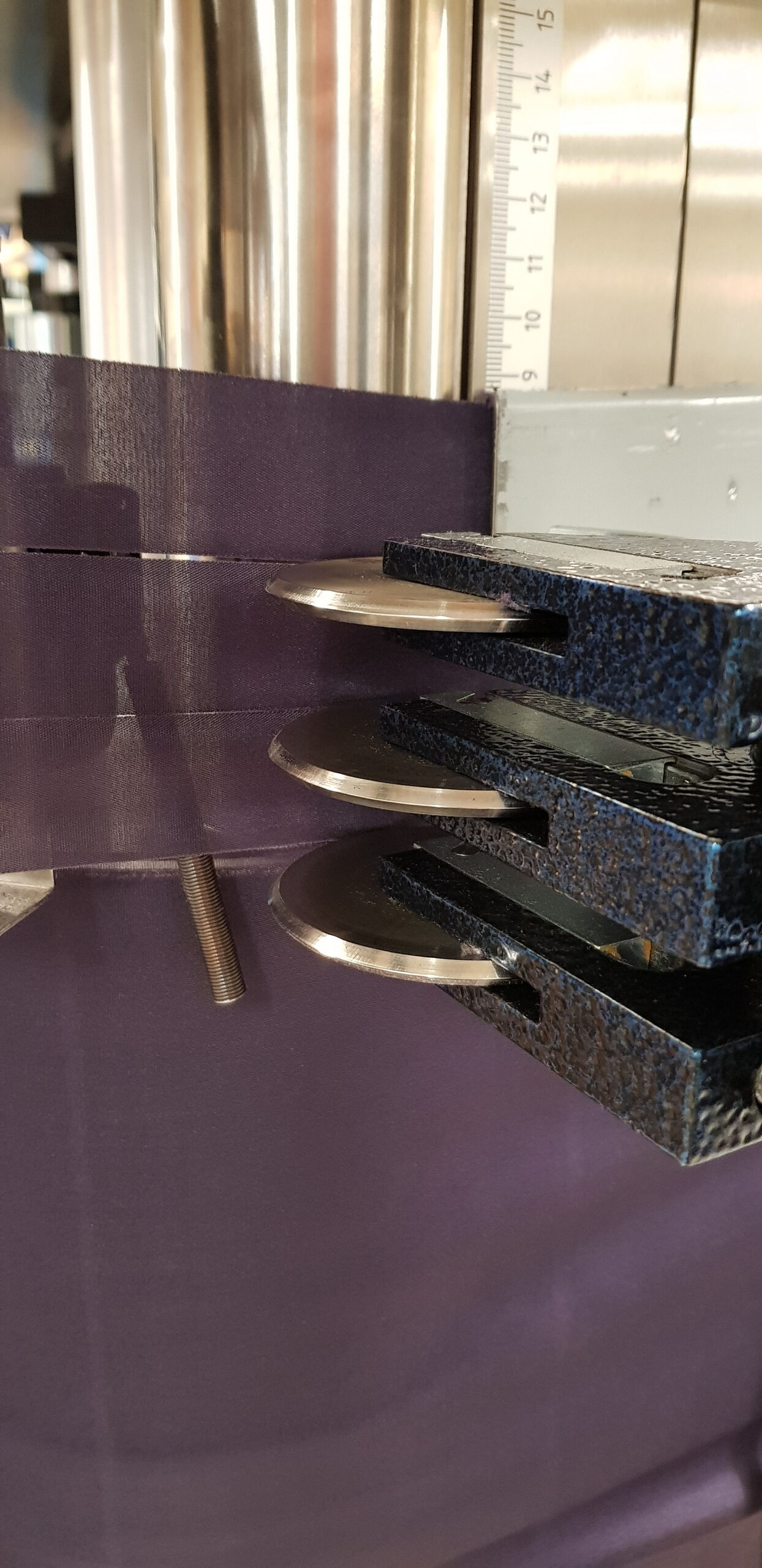

- Cutting knives and rollers are made of highest grade Swedish steel
- Auto stop feature when the band roll reaches the required preset size, up to a maximum of 280 mm (11 ½”)
- Automatic major fabric flow detection
- Safety guards to assure maximum operator protection
- As an option, the machine can be equipped with a sharp knife system
Specification
| Tubular Fabric width | 35 cm* – 110 cm, (14″* – 43″) (*some elasticity required in the fabric) |
| Band width | 16 mm – 170 mm*, (5/8″ – 6 3/4″*) (*small tubular diameter fabrics reduse the ability to cut the very wide bands) |
| Number of bands | 3 (4 bands with additional knife unit) |
| Cutting capacity | 3 x 0 – 40 m/min |
| Cutting system | Crush cutting (available on request with sharp knife sysstem) |
| Folded fabric | Standard |
| Rolled fabric | Extra, max 32″ |
| Folded/Rolled fabric | Extra, High Prefeed Device, max 36” (TD-II recommended) |
| Metre/yard counter | Extra |
| Fabric hole detector | This machine includes an efficient mechanical stop device |
| Festooner | Extra |
| Anti-static device | Extra |
| E-drive, electronic speed synchronization for fabric turntable | Extra |
| True-drive: PLC-controlled speed-synchronization of fabric turn-table | Extra |
| Dust Phantom, vacuum unit for removal of lint/dust | Extra |
| Cut roll lifter | Extra |
