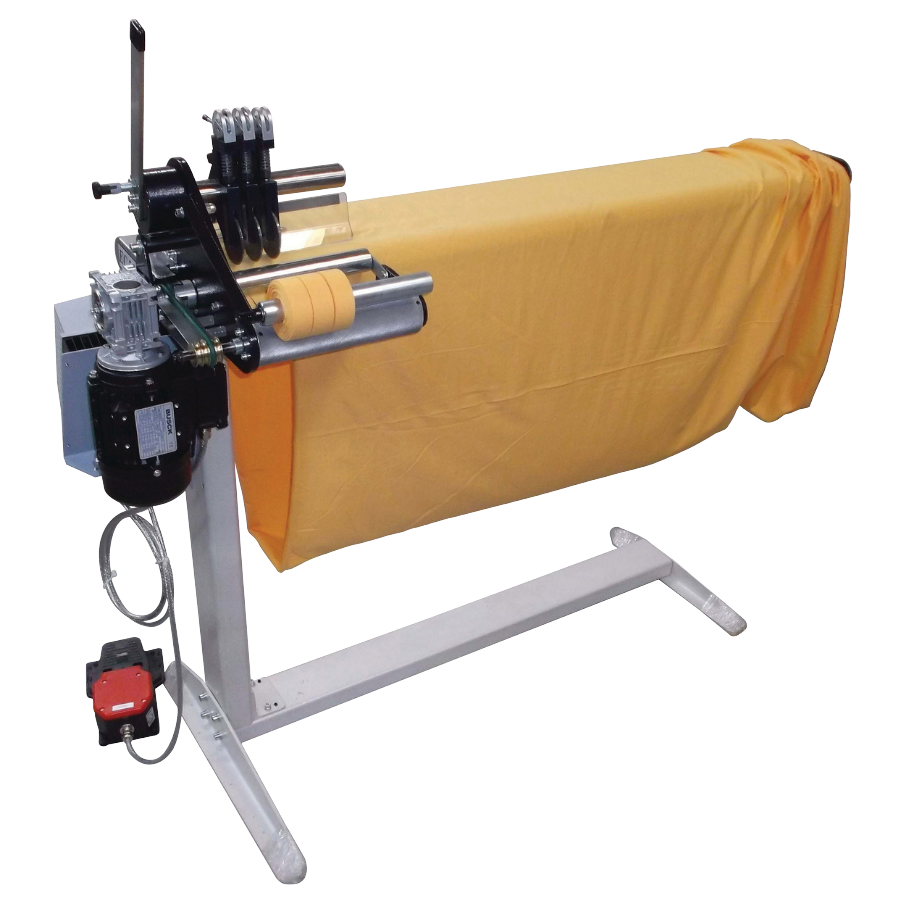

Euro-Collarette 50 Semi Automatic (EC 50 )

The Svegea EC 50 handles body size and large diameter tubular fabric. It is capable of cutting binding from 16 – 200 mm in width (5/8 – 8”). The standard machine cuts 3 bands simultaneously (4 with an additional knife unit).

Description

Main features:

  • Cuts virtually all knitted fabric
  • Simple and precise measurement scales makes the machine easy to adjust and operate
  • Produces top-quality – relaxed binding
  • Very low waste
  • Cutting knives of high-grade Swedish steel
  • Limited working parts for very low maintenance
  • Economically priced

pdf_logo EC 50 Product Brochure
Movie clip EC 50

Specification

Tubular Fabric width 27 cm – ∞ cm, (11″ – ∞”) Some elasticity required in the fabric
Band width 16 mm – 140 mm, (5/8″ – 5 1/2″) Small tubular diameter fabric reduce the ability to cut the very wide bands
Number of bands 3 (4 bands with additional knife unit)
Cutting capacity 0 – 30 m/min, 0 – 33 yard/min
Cutting system Crush cutting (Available on request with sharp knife system)
