Strip Cutter FA 500

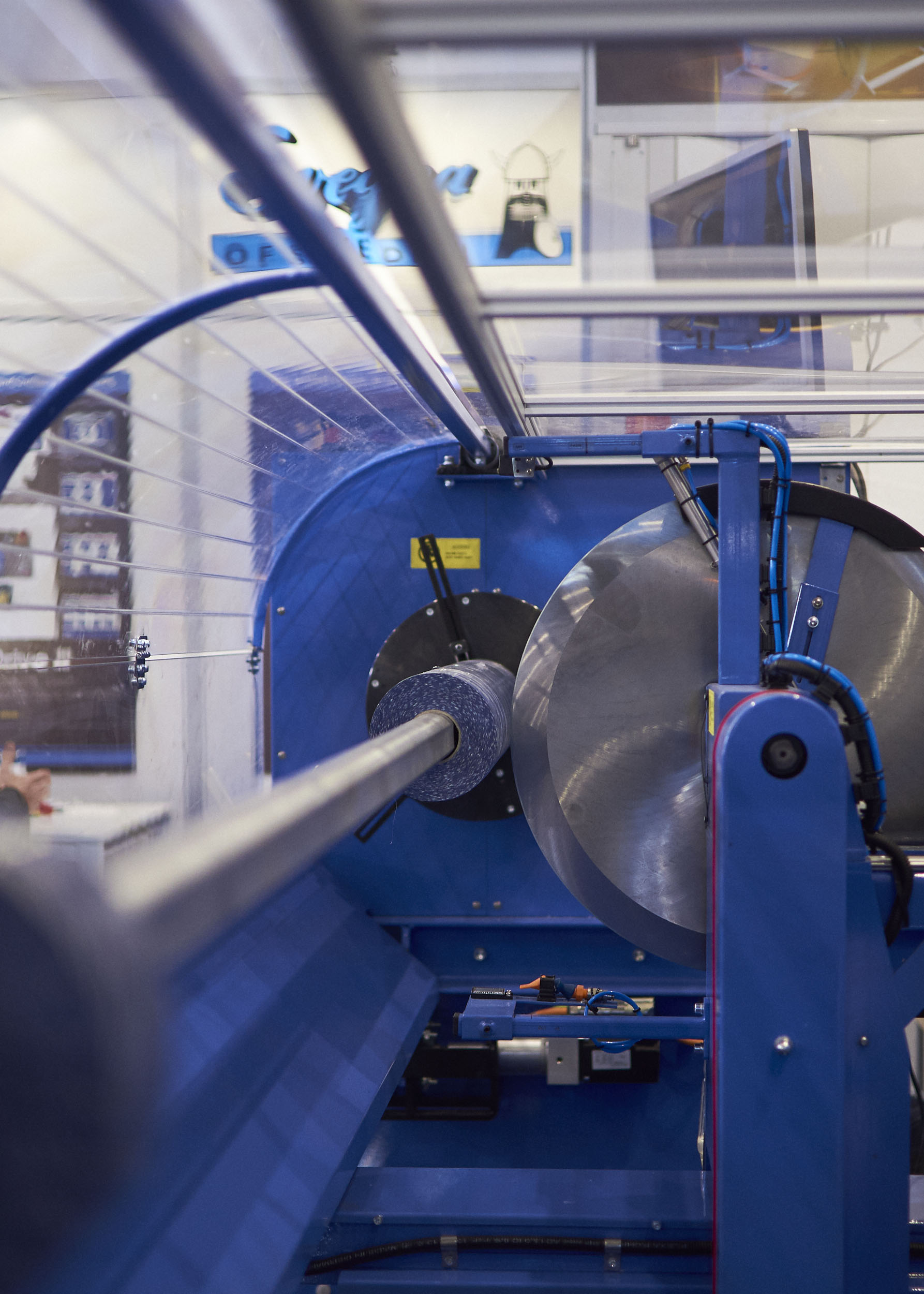

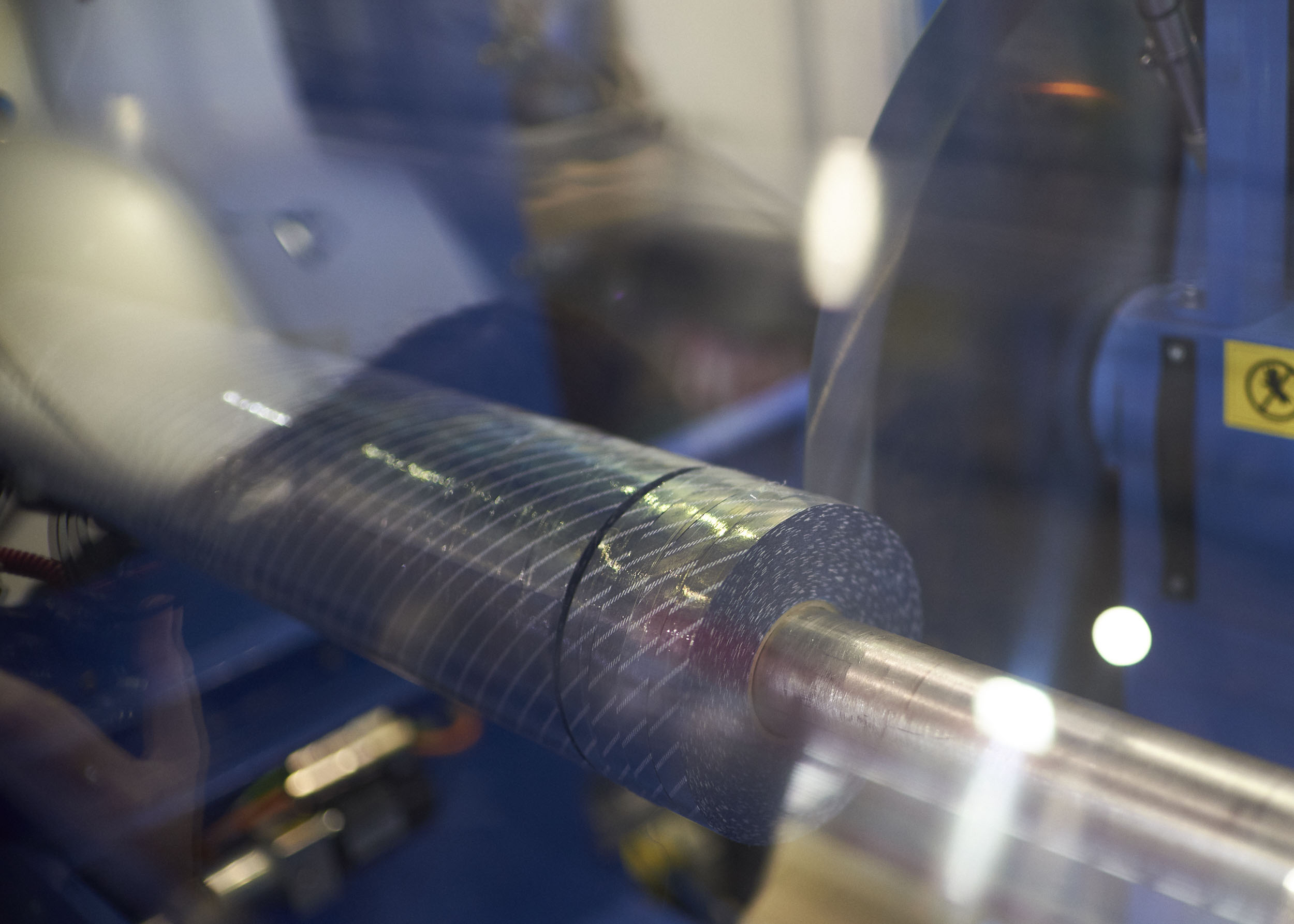

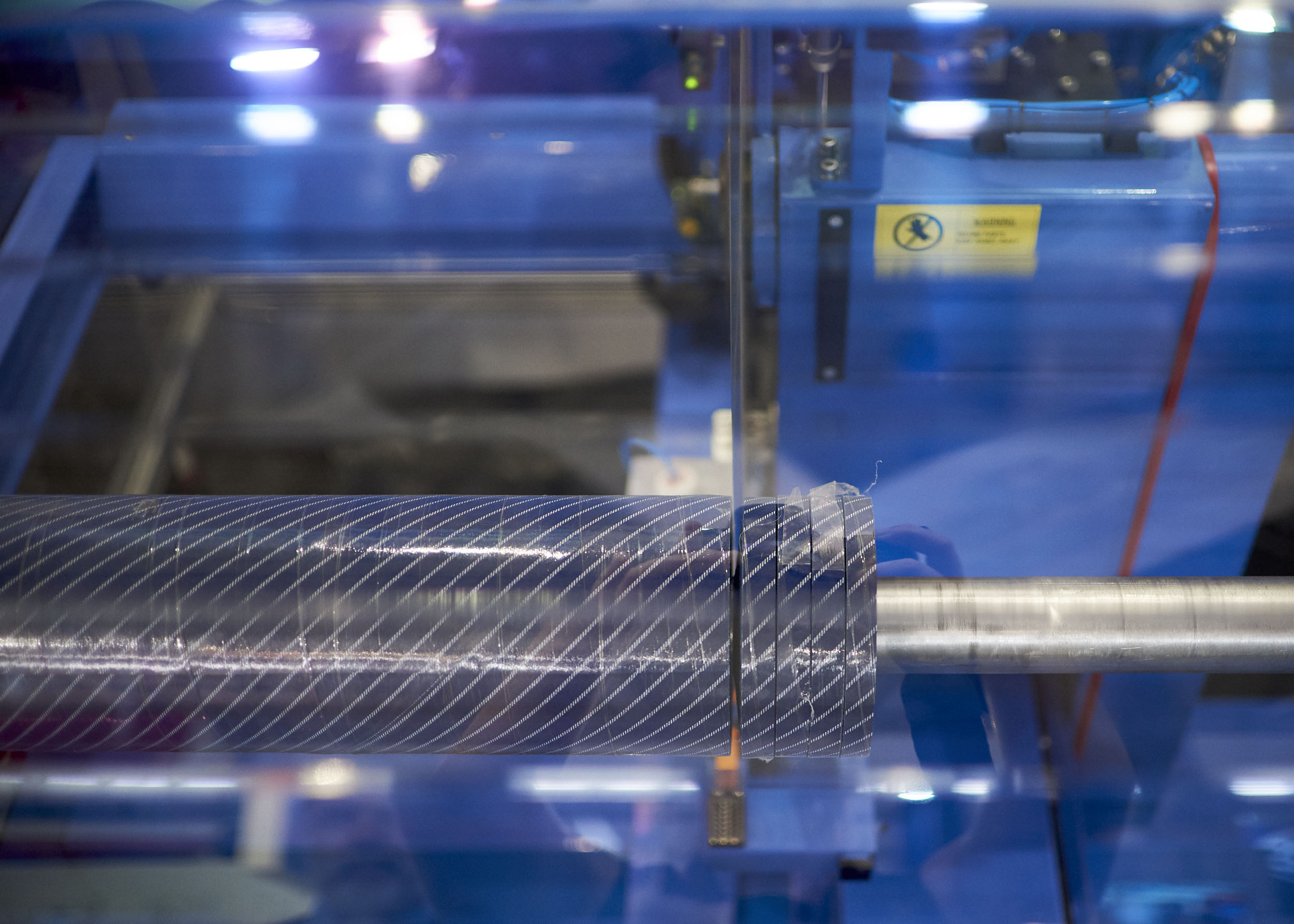

The Svegea Model FA 500 is a heavy-duty, fully automatic roll-slitting machine. It will slit any type of material on the roll (e.g open knits, woven fabric, PVC, Vinyl, Satin, polyester, paper products, non-wovens, etc).

Description

Main features:

  • Up to 3 preset cut widths and number of cuts per cycle, 3 programs as standard
  • Touch screen panel
  • Totally enclosed during cut cycle for complete operator safetys
  • Adjustable variable speed blade penetration
  • Adjustable variable speed blade and material roll rotation
  • Automatic sharpening of cutting blade with adjustable sharpening time
  • All functions are PLC controlled
  • Automatic blade cooling device with variable settings (optional)
  • Pneumatic fabric loading support

pdf_logo Strip Cutter FA 500 Product Brochure

pdf_logo FA350-500 Hard-Software Product Catalog

Specification

Maximal operation width 2000 mm (78″) (other dimensions on requests)
Max roll diameter 400 mm (15 3/4″)
Diameter of cutting blade 500 mm (20″)
Diameter of fabric shaft 48 mm (1 7/8″) (other dimensions on requests)
Card board tube inside diameter 50 mm (2″) (other dimensions on requests)
Cutting accuracy +/- 0,01 mm
Air pressure 6 bar min
Motors
Motor – chuck 1.5 kW
Motor – Cutter blade 2.2 kW
Motor – grinder 0.18 kW
Power 230 V, single phase, 50/60 cycles
Machine dimensions
Length / Width / Height 325 / 150 / 156 cm (130 / 59 / 61″)
Net weight 860 Kg
Options
  • Blade cooling system
  • Auto-Chuck, Pneumatic
