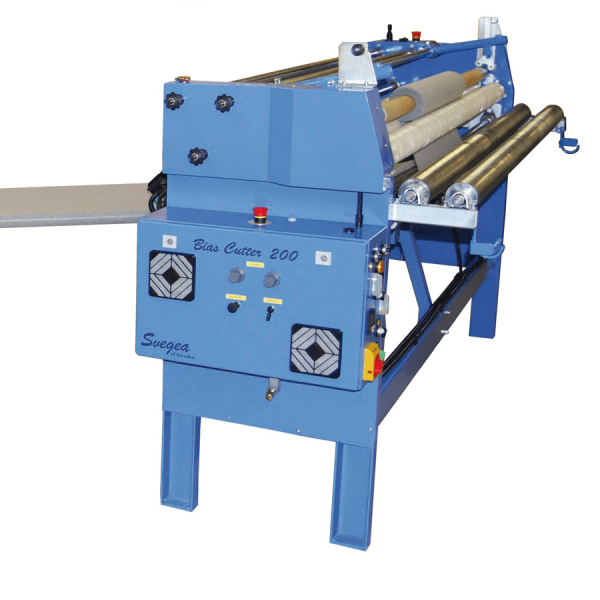

Bias Cutter / Winder 200

The Bias Cutter/Winder opens previously formed tube material – spirally in the bias – and rewinds a single ply roll, prepared for the Strip Cutter.

Description

Main features:

  • New frame design
  • Pneumatic control of fabric pressure bar
  • Electronic (joystick) drive/transport of fabric bias bars
  • New easy unloading mechanism of the fabric roll
  • Pneumatic knife grinder
  • Variable stitch length
  • Equipped with bow bar for wrinkle elimination

pdf_logo Bias Cutter/Winder 200 Product Brochure

 Movie clip BIAS

Specification

Maximal open width 2000 mm (78″) (other dimensions on requests)
Max roll diameter 280 mm (11″)
Reroll shaft diameter 48 mm (1 7/8″) (other dimensions on requests)
Card board core inside diameter 50 mm (2″) (other dimensions on requests)
Bias cutting blade 150 mm (6″)
Bias angle 38 – 52 degrees (12 – 52 degree cutting available with optional kit)
Running speed Infinitely variable, up to 30m/min (33 yards/min), electronic
Motors
Main motor 1.1 kW
Motor for cutter blade 0.18 kW
Power 230 V, single phase, 50/60 ft
Machine dimensions
Length / Width / Heigth 235 / 150 / 110 cm (93 / 59 / 43″)
Net weigth 490 Kg
Standard equipment
  • Out of fabric auto stop
  • Electronic meter/yardage counter for accurate control of rolled length or pre-setting of required length
  • Electronic speed synchronization of fabric rotator
  • Integrated fabric rewinder
